Numpy Test Pattern: Mandelbrot

Sort of a 'Hello World' for Numpy.
Sort of beyond that.


Zeroing-In on the Mandelbrot Set

Same Formula
Different Resolution
Yielding Different Results


Complete Code, far-far below

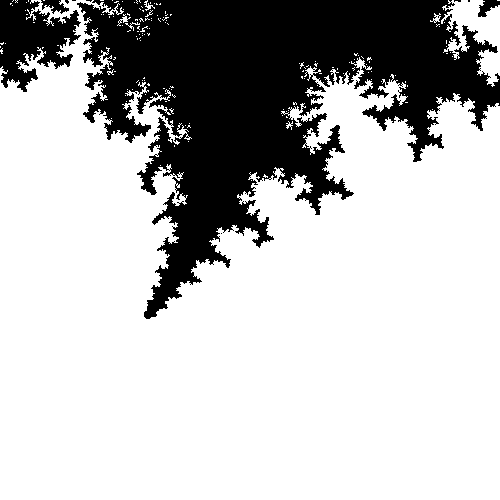

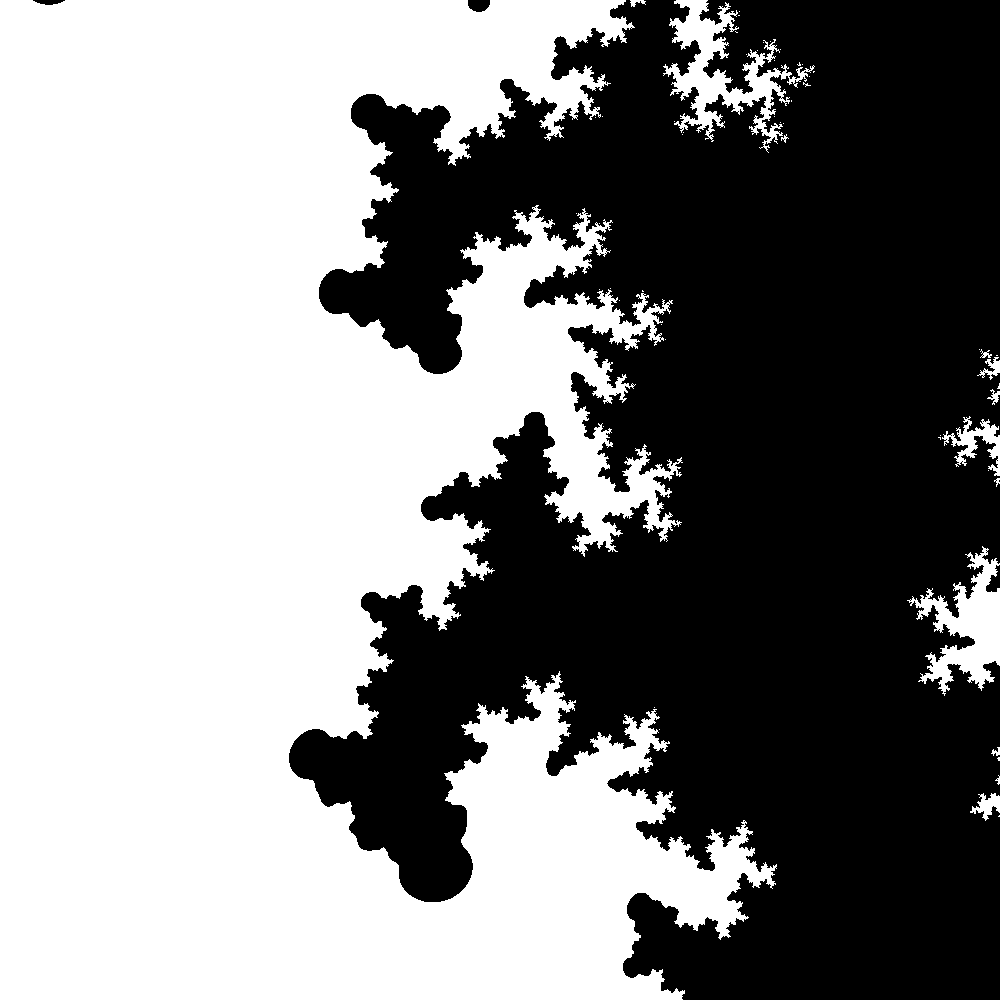

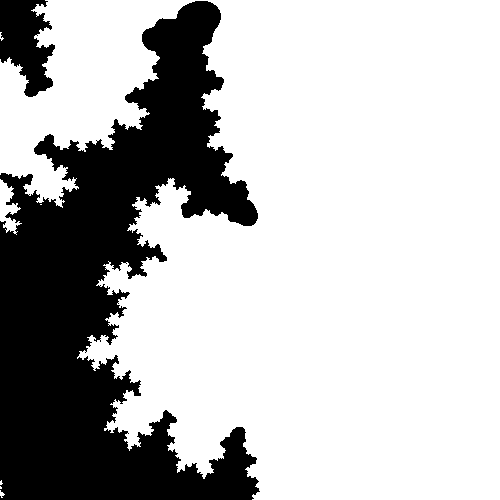

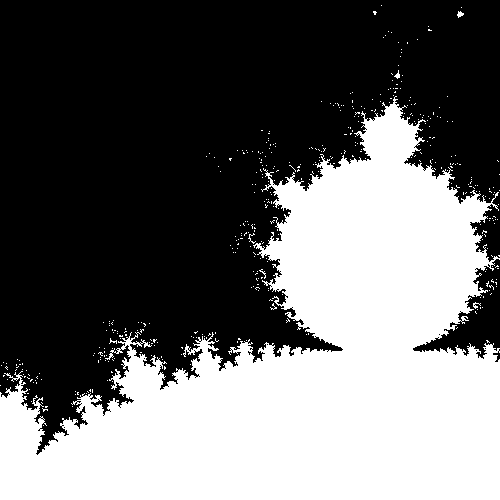

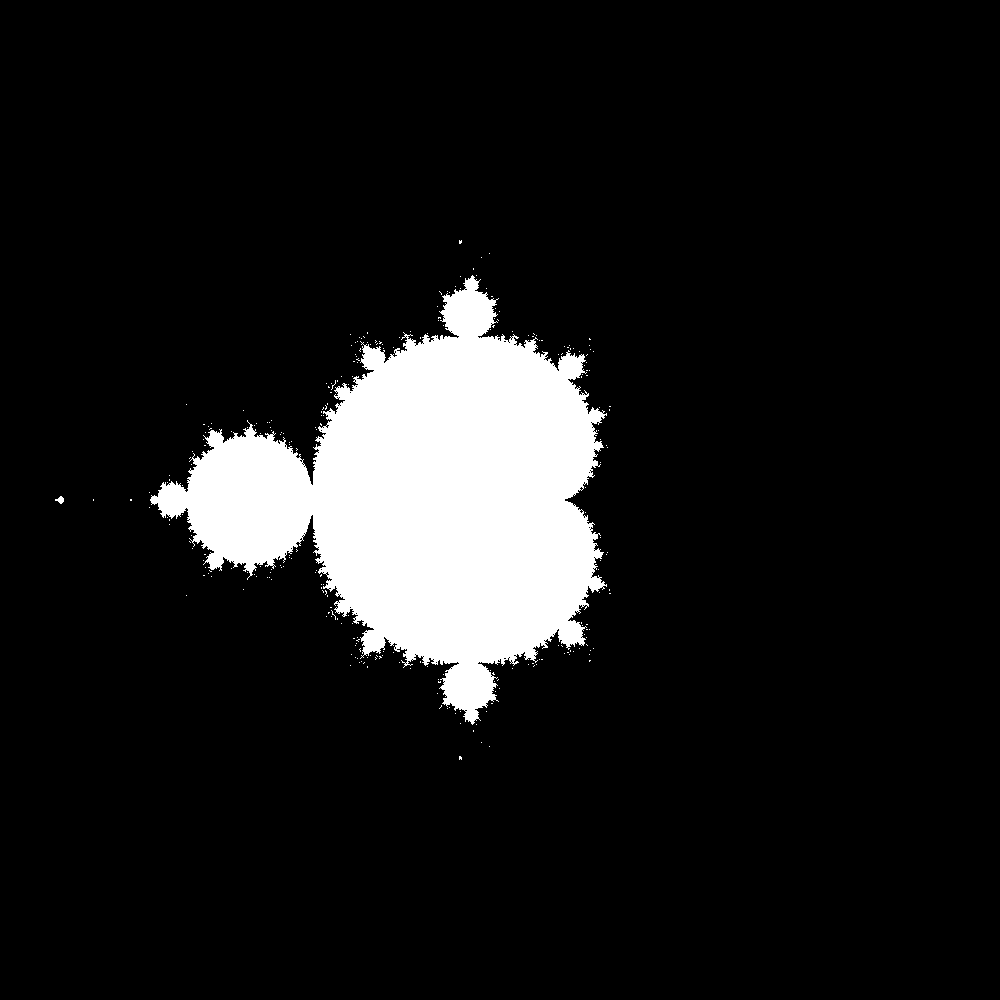

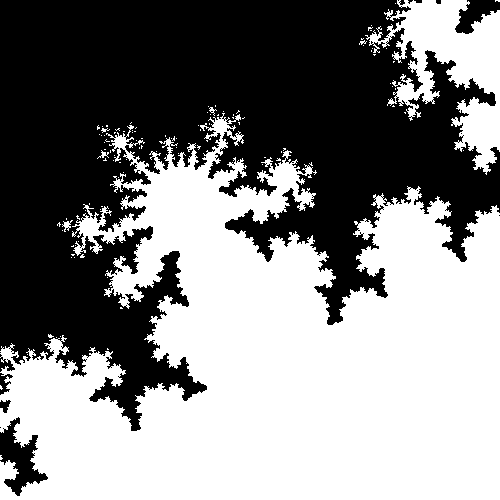

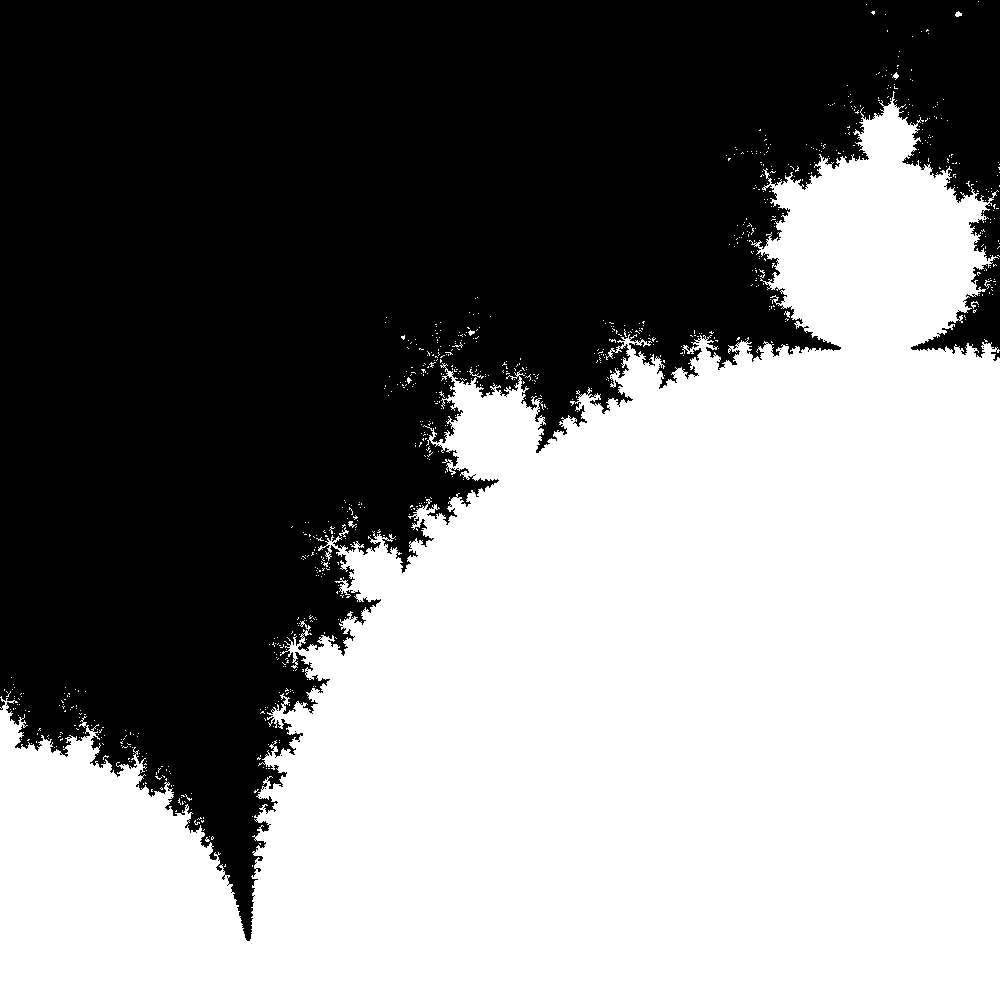

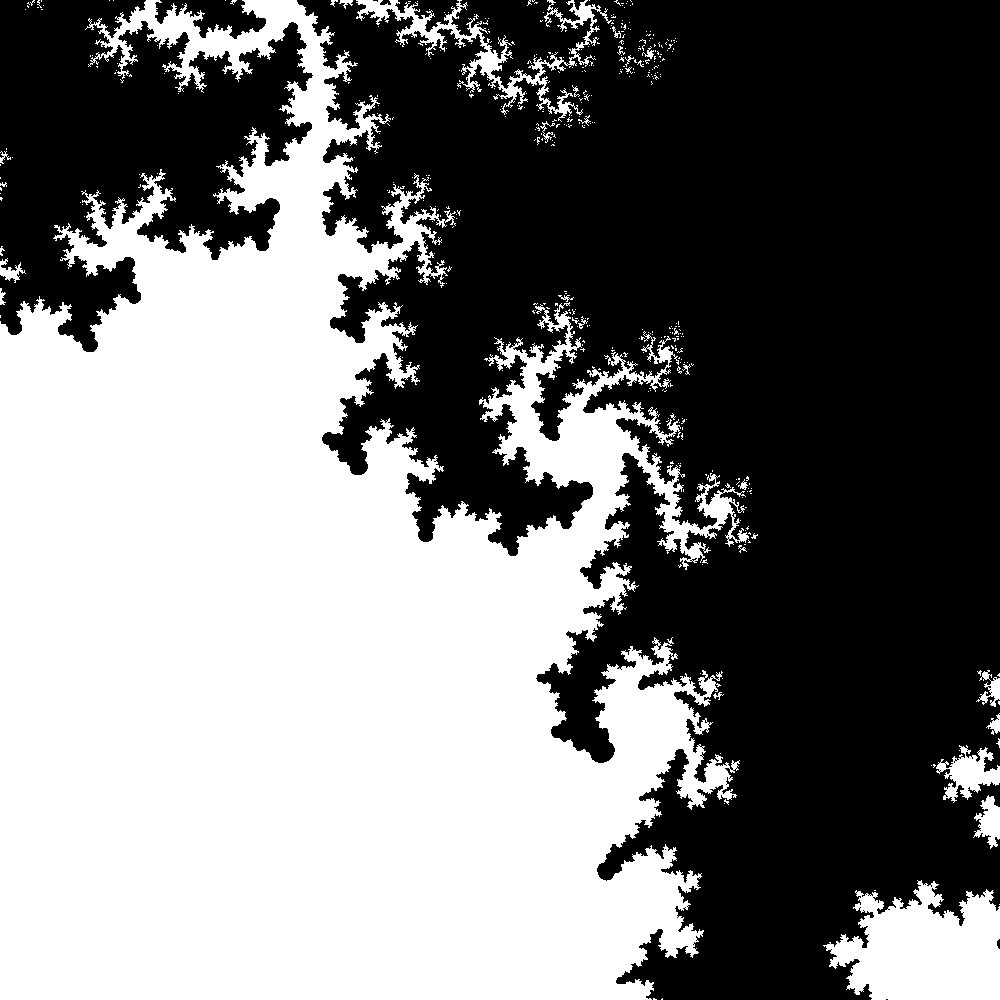

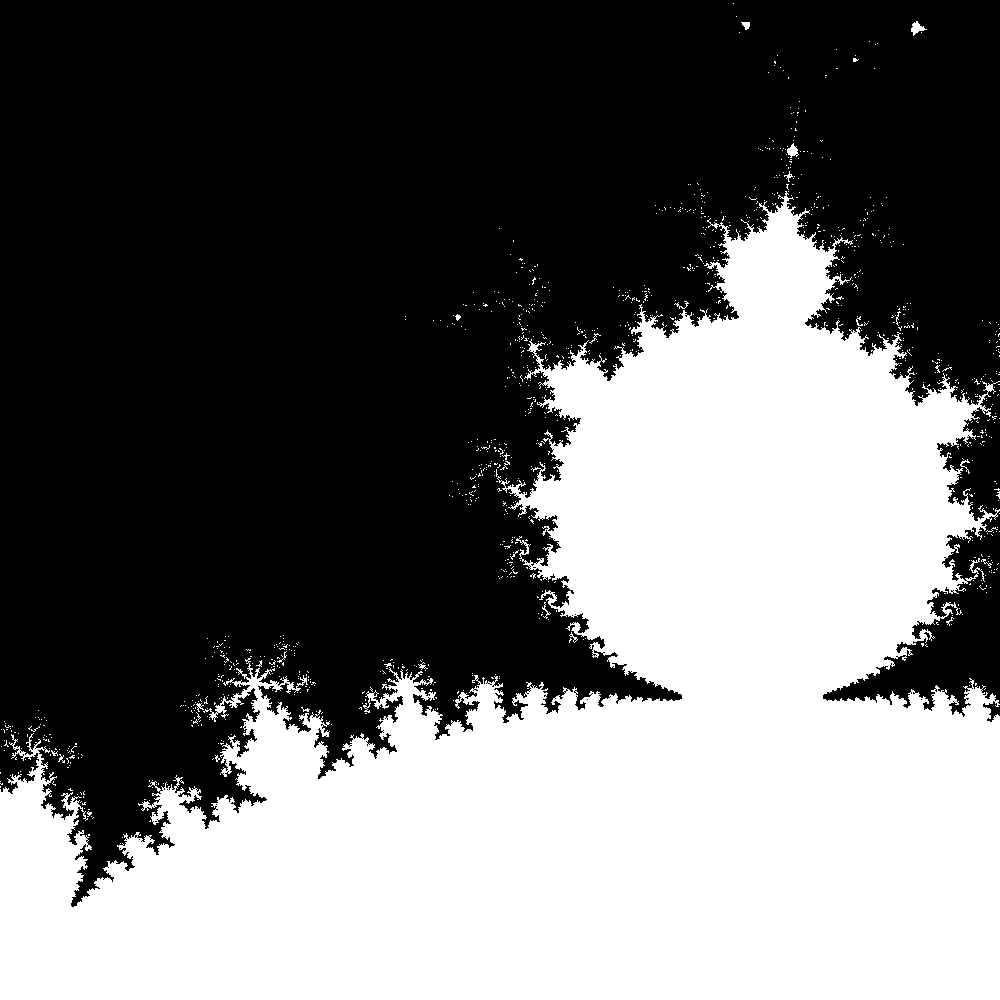

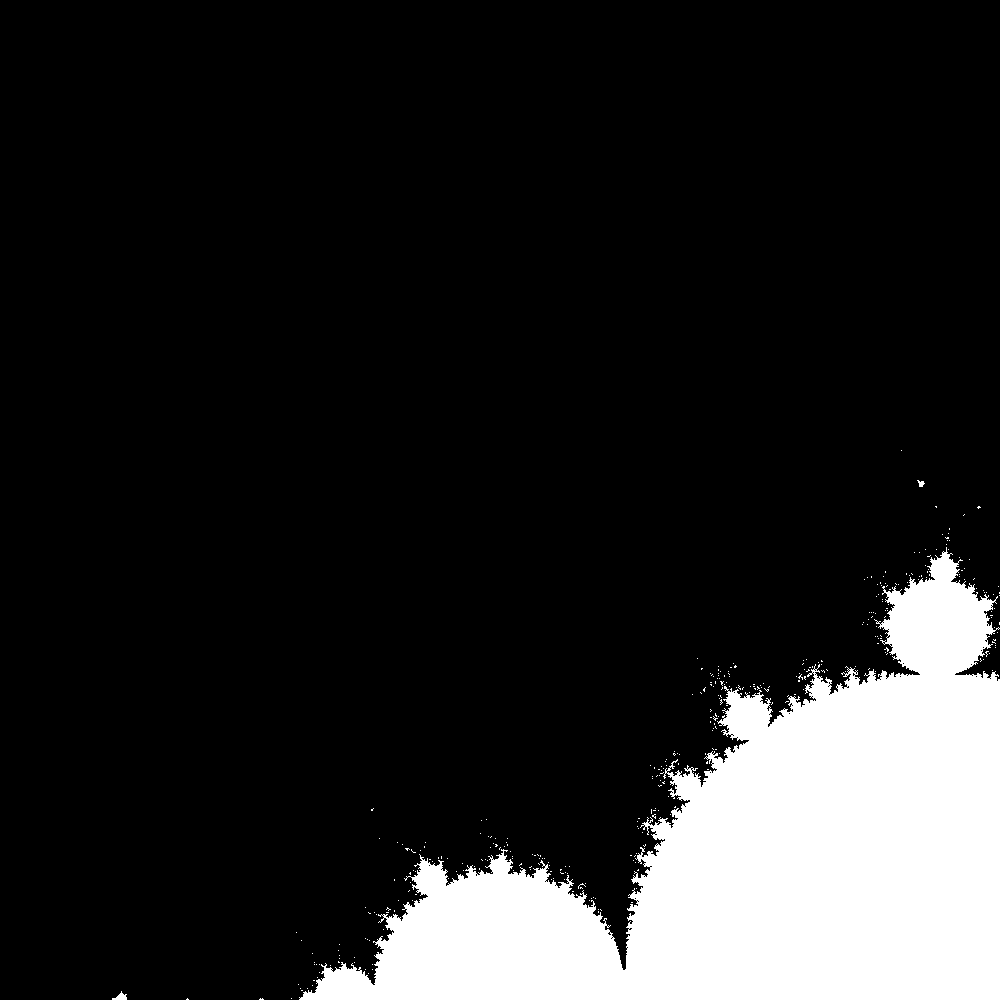

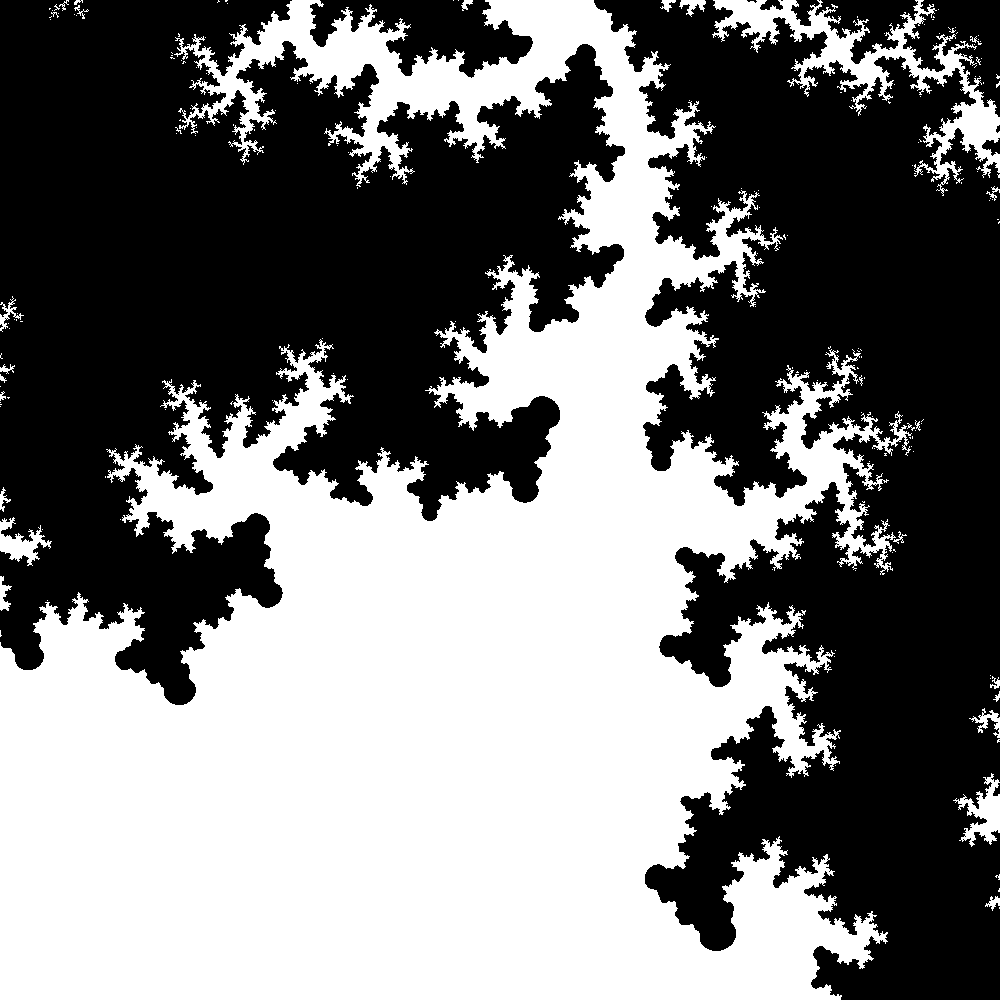

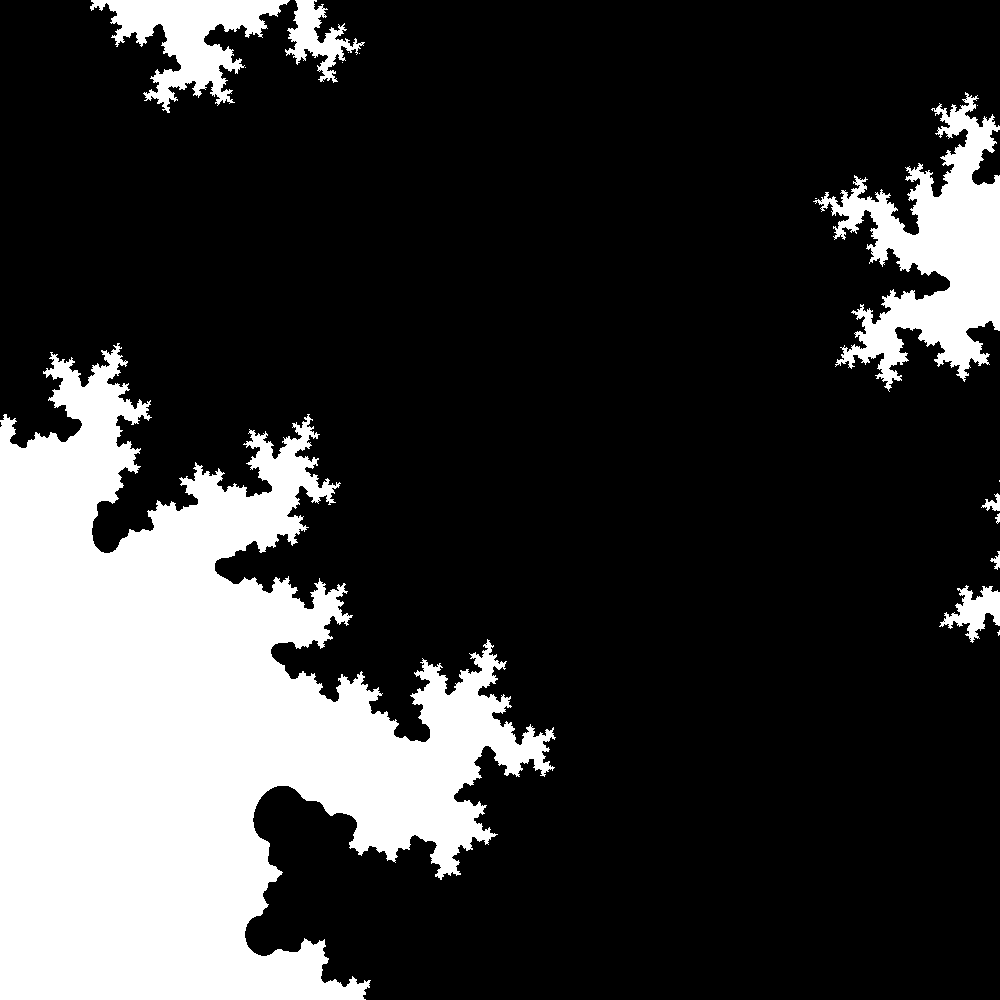

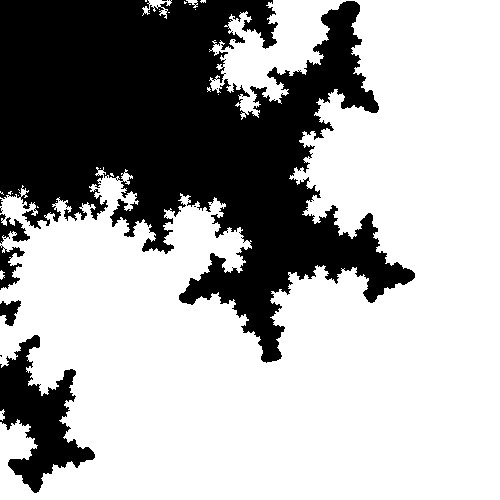

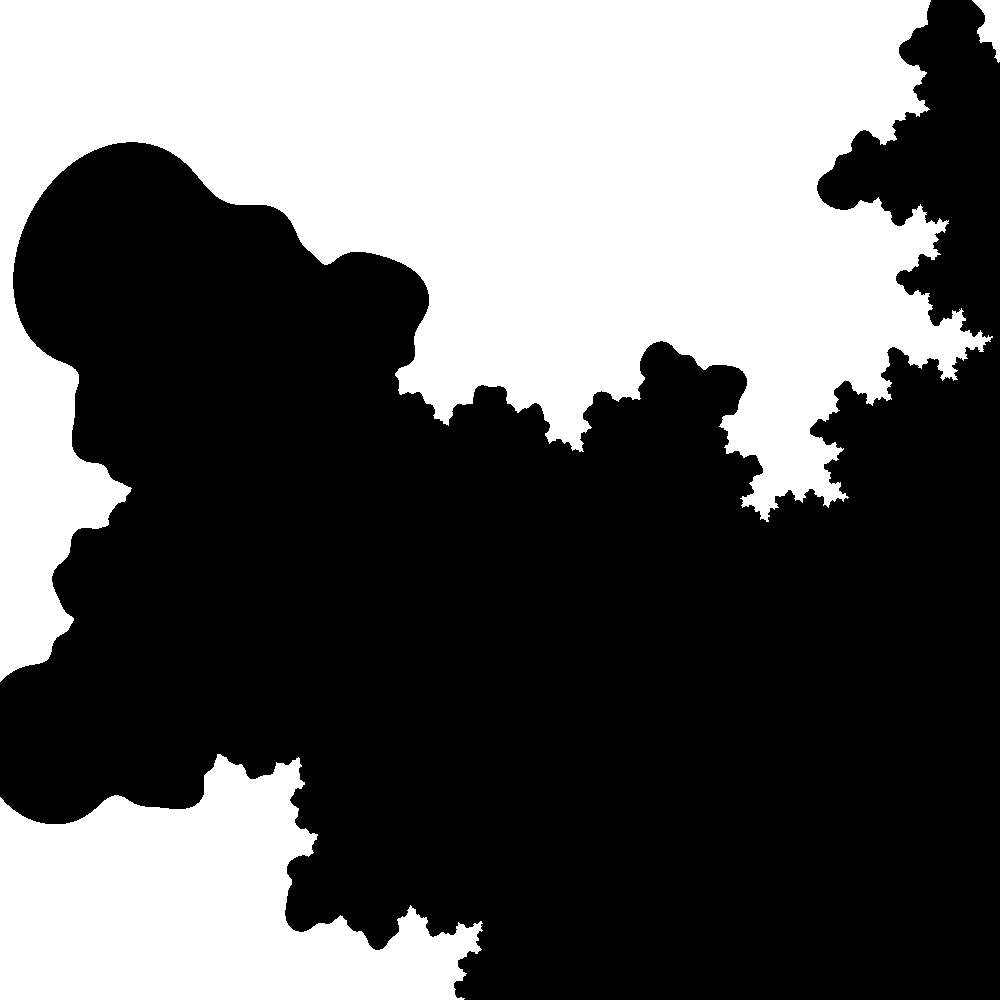

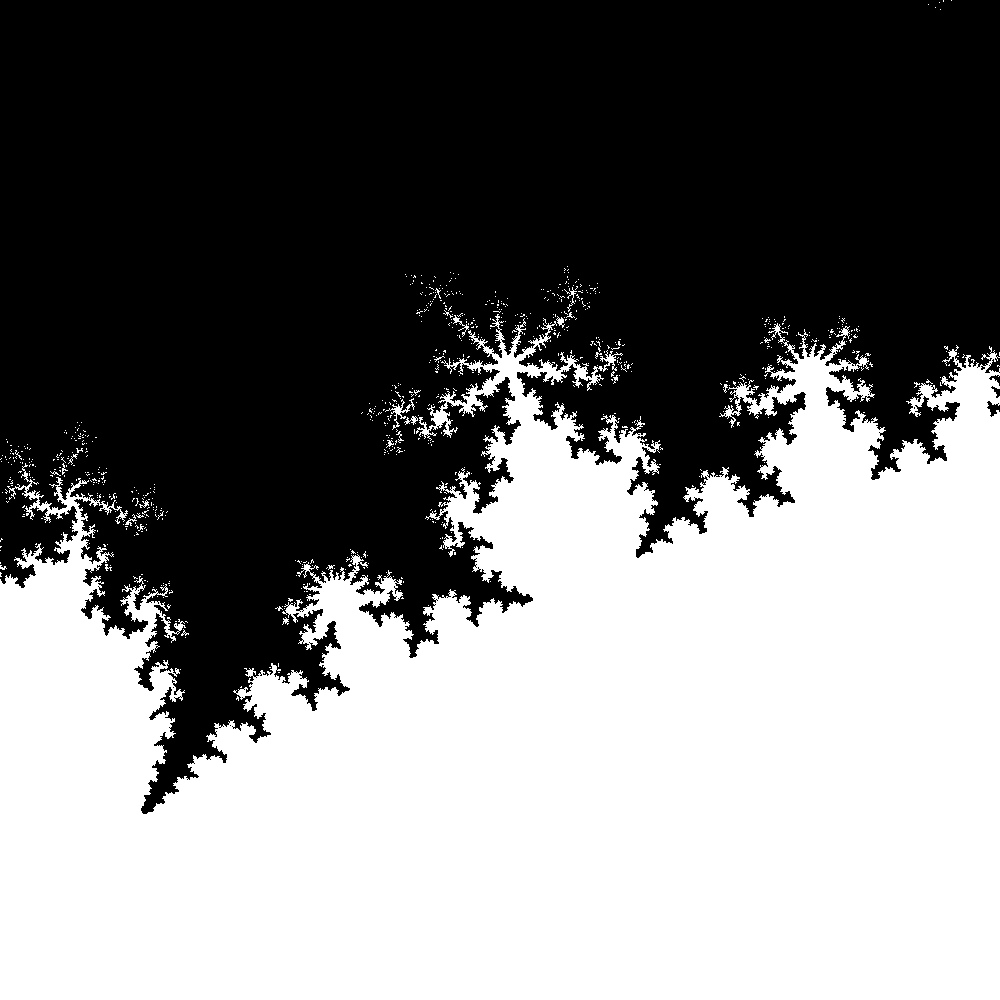

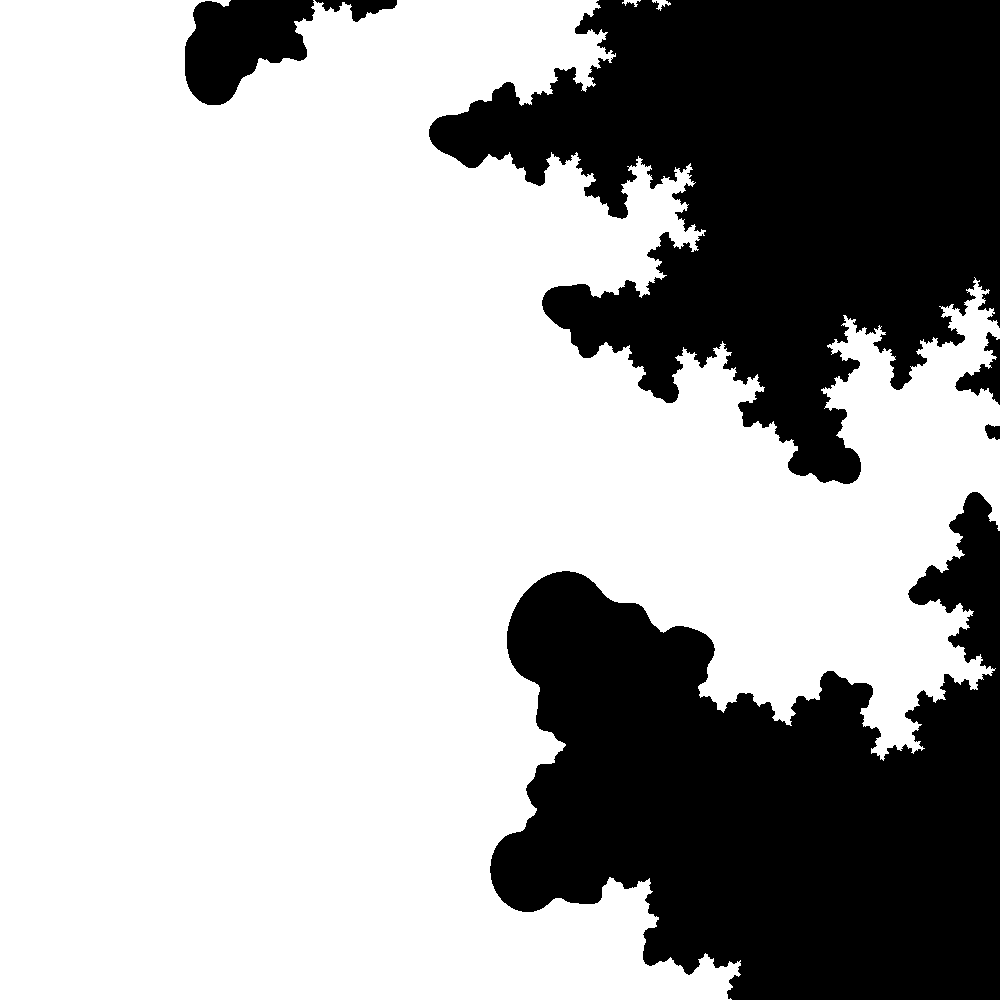

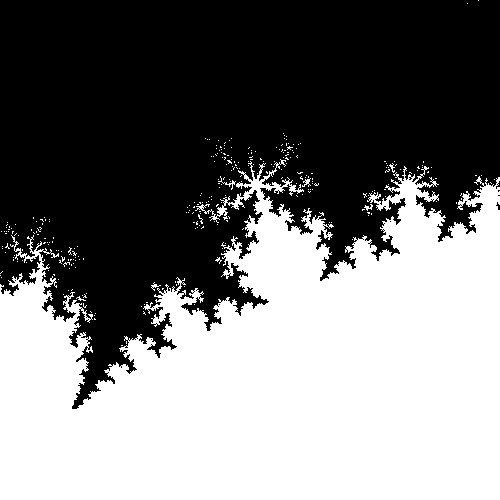

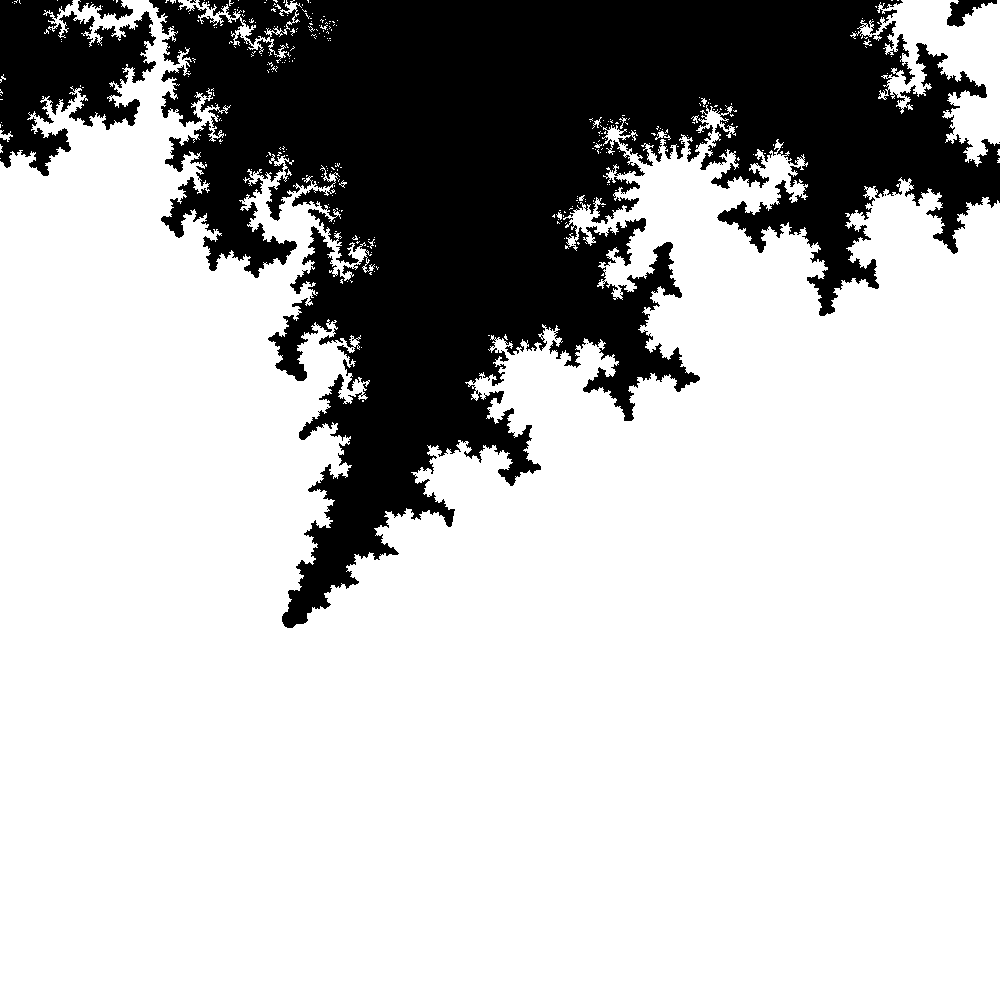

Mandelbrot Set - Ever Higher Resolution Set
100px
Mandelbrot Set - Ever Higher Resolution Set
250px
Mandelbrot Set - Ever Higher Resolution Set
500px
Mandelbrot Set - Ever Higher Resolution Set
1000px

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Function automatically zooms in on the most interesting quadrant (where the number of black pixels is most equal to the number of white pixels -- i.e. a 50-50 split).

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Second iteration (or is that the third, suppose it matters how one counts) and all is well.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
First break. Once again, this is due only to the picture size (and hence the individual pixel values calculated).

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
White is the mandebrot set.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
The iteration (x22 + c) tends toward infinity in the black area.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Second break (divergence). 'Tends toward infinity' means (x22 + c) is greater than 2 after 50 iterations.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
If you don't already understand the Mandelbrot Set, the previous is extremely unlikely to shed any additional light.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Final divergences: all four resolution paths are now drilling down ever deeper into different regions of the Mandelbrot set.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
The self similarity is still easy enough to see (to me, anyway).

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set

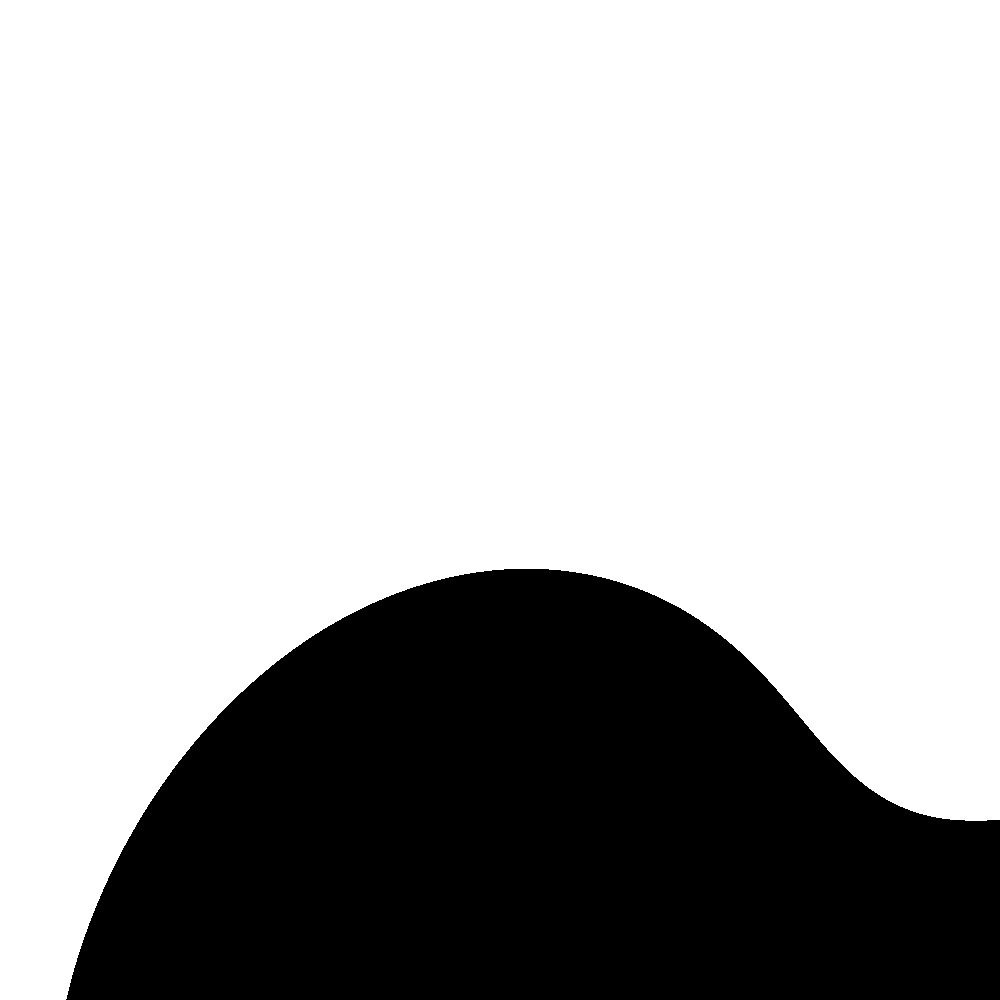

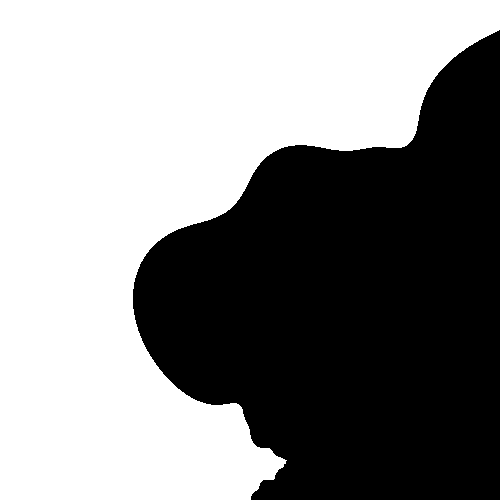

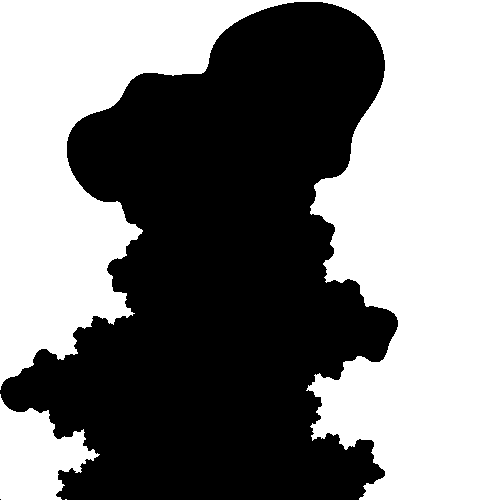

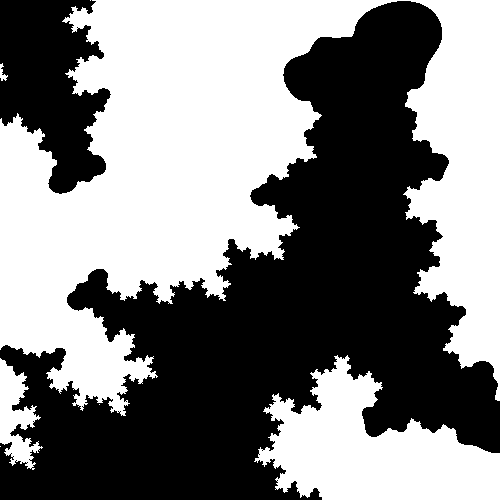

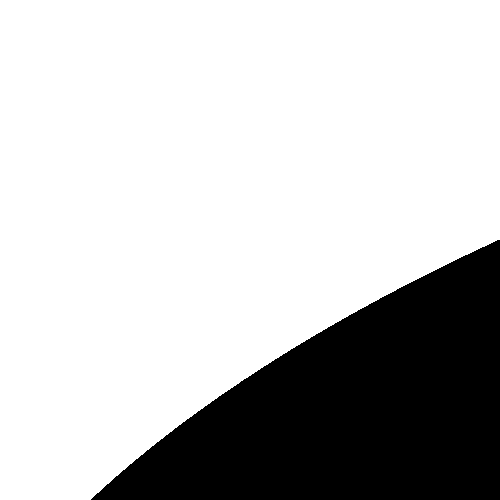

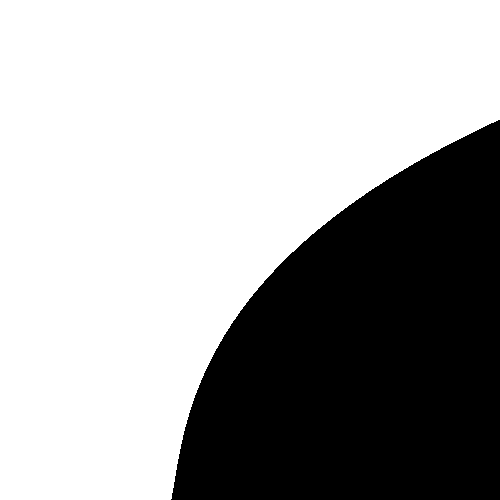

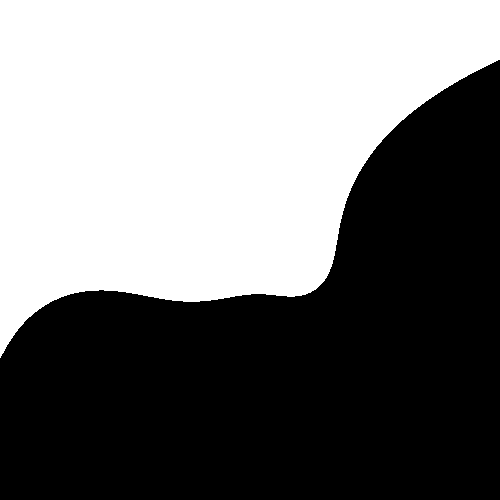

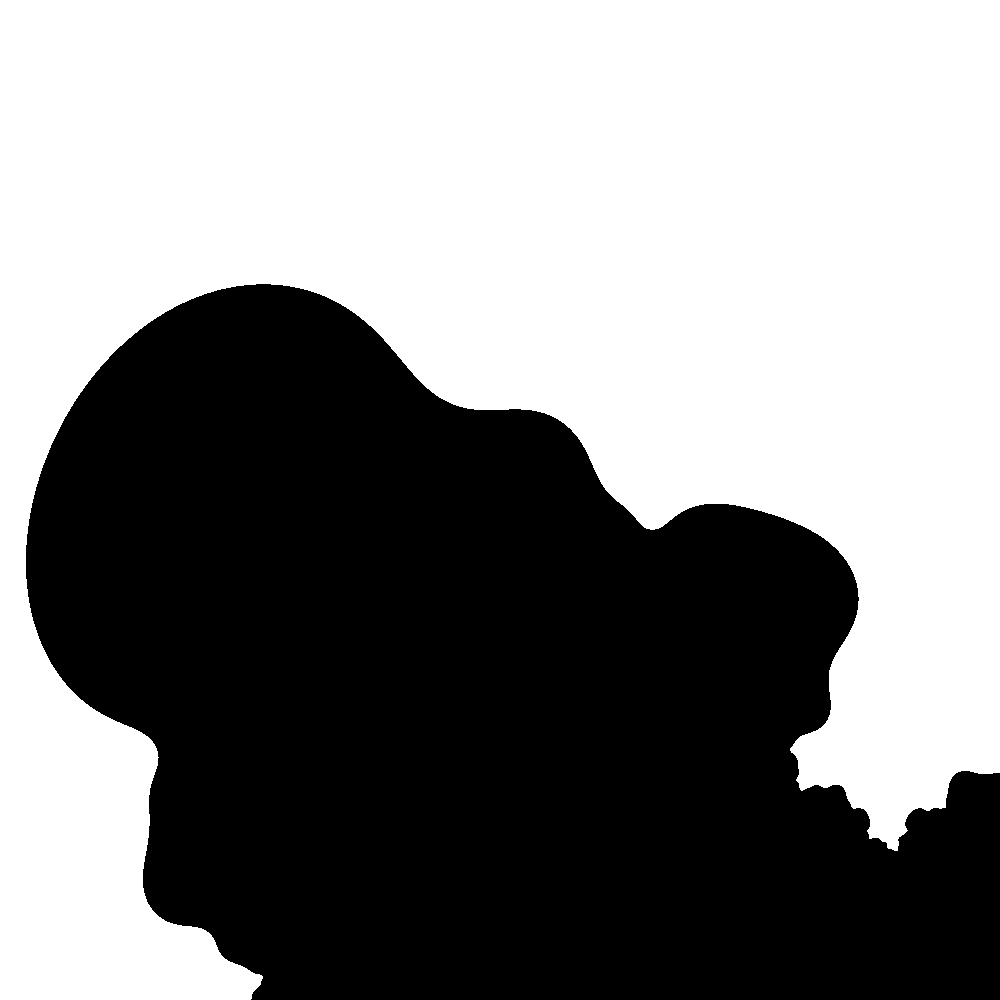

Here the lines start to smooth. This is a limitation of Numpy's resolution (or a limitation of my ability to tweak Numpy, take your pick).

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Numpy only has 15 digits (or whatever, can't say I checked or care) of resolution.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
So, at the end of the line, there is no variance in the values.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set

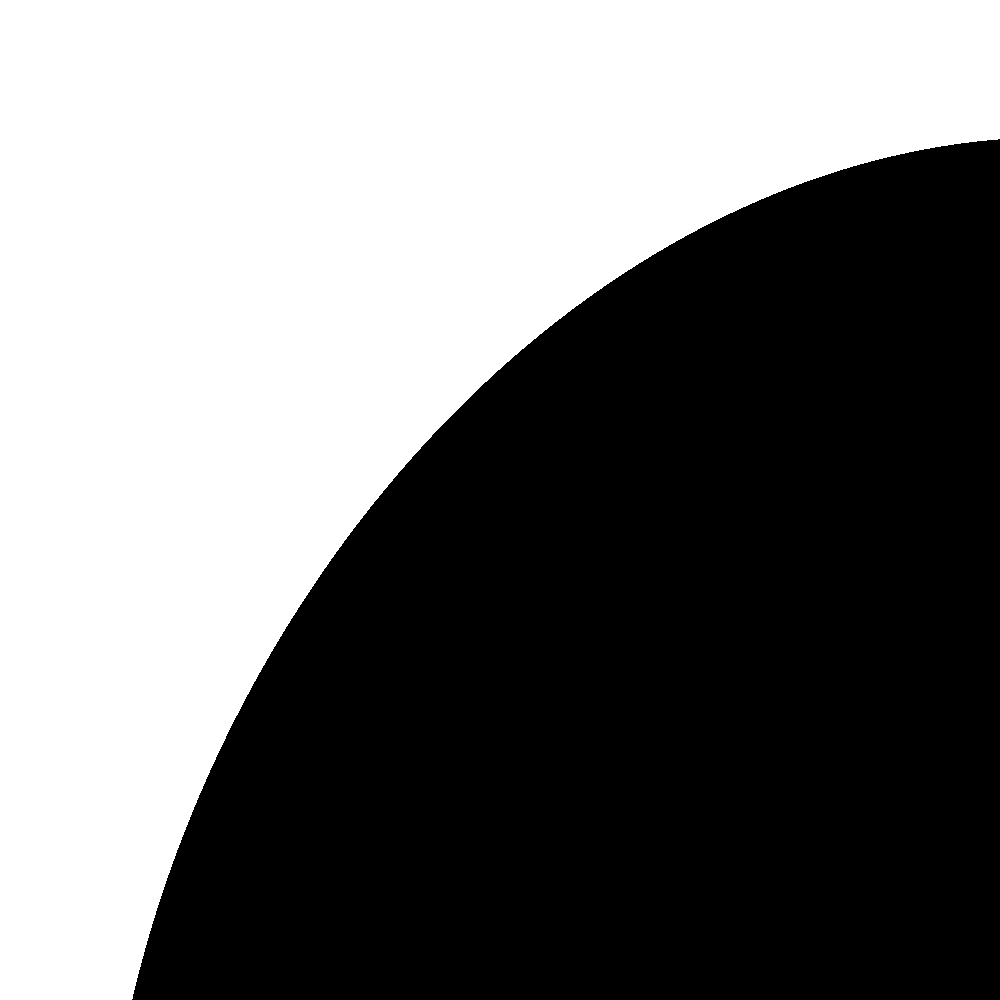

And we're looking at the blurriness inherent in 15 digits (or whatever) of accuracy.

Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Mandelbrot Set - Ever Higher Resolution Set
Or maybe there's some other explanation beyond my ken.

Don't ask my why the 500px blurs out slightly ahead of the 1000px series. Probably just luck of the draw (e.g. where the last significant digit lands).

Resolving the Mandelbrot Set


All those colourful pictures of the Mandelbrot Set? They're based on what pixels tend toward infinity (are greater than 2) at each level of iteration.

This is the base iteration:

def base_iter(x,c):
    return x*x + c


So, like a sculptor, higher resolutions narrow the field.

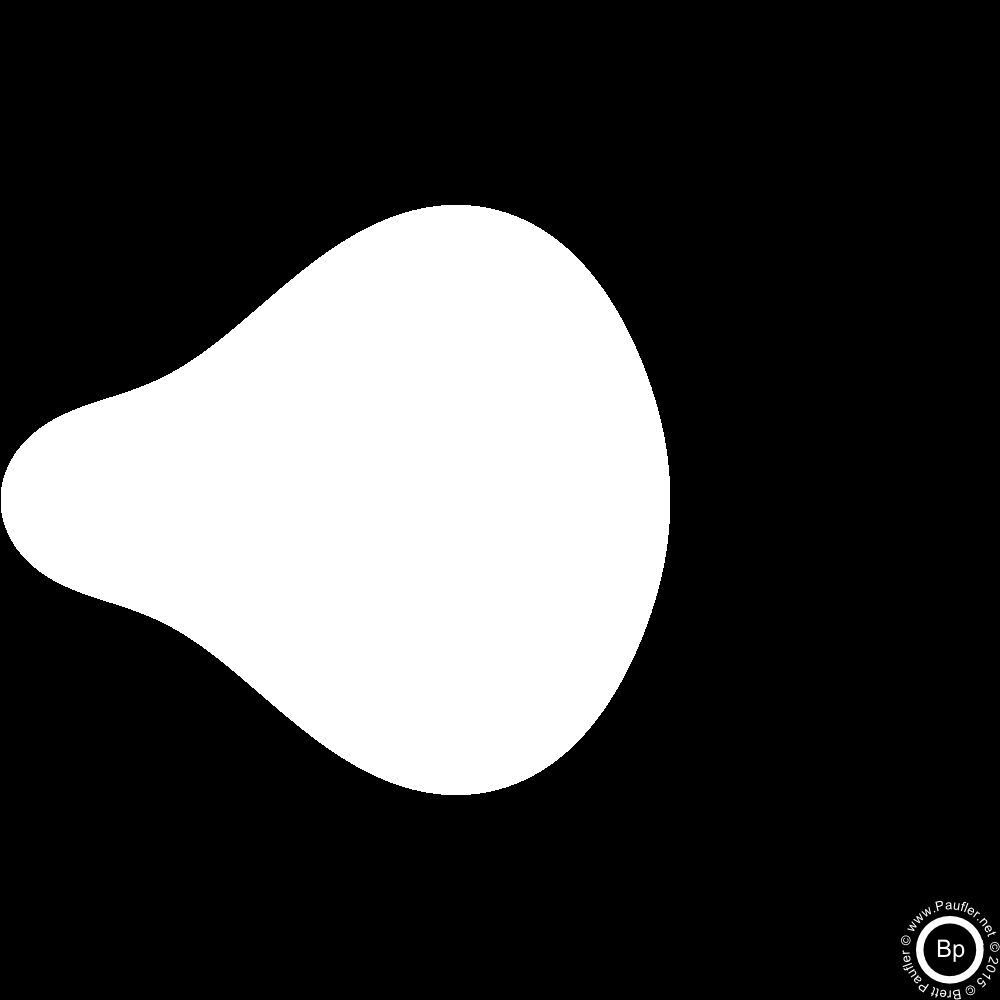

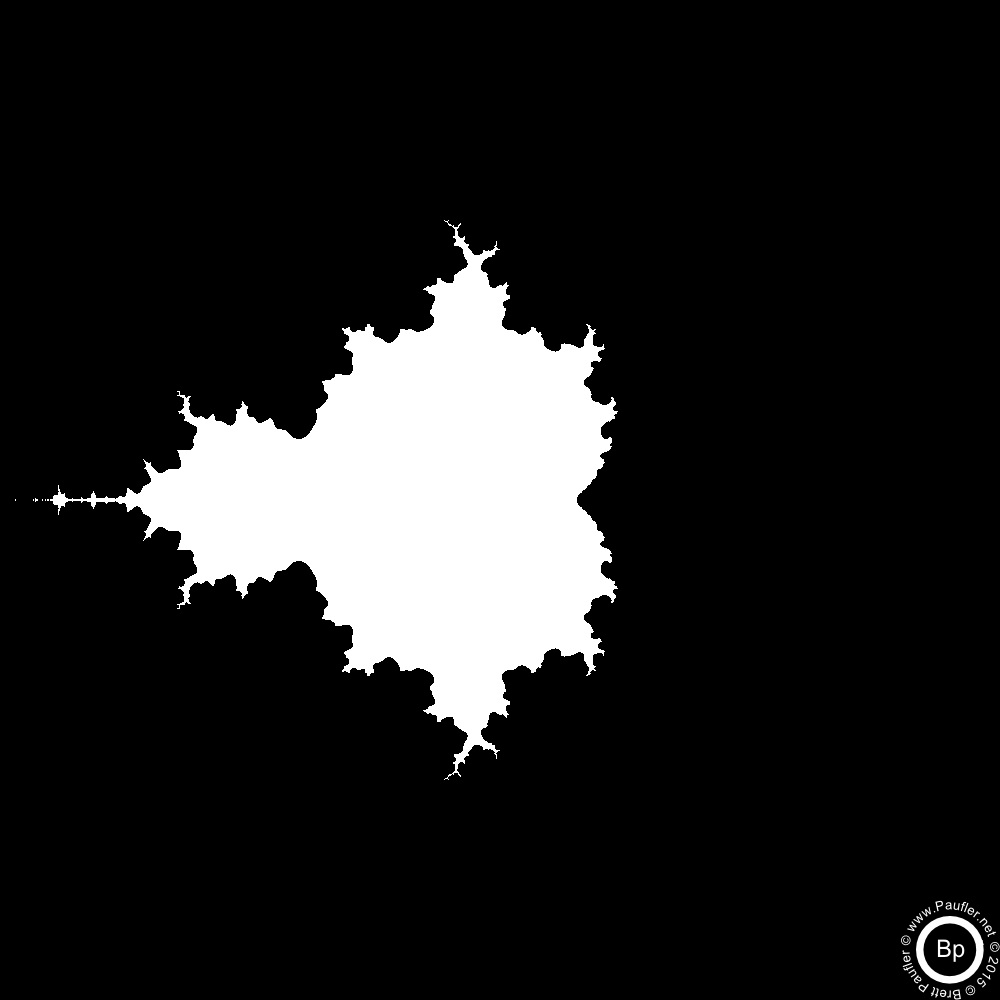

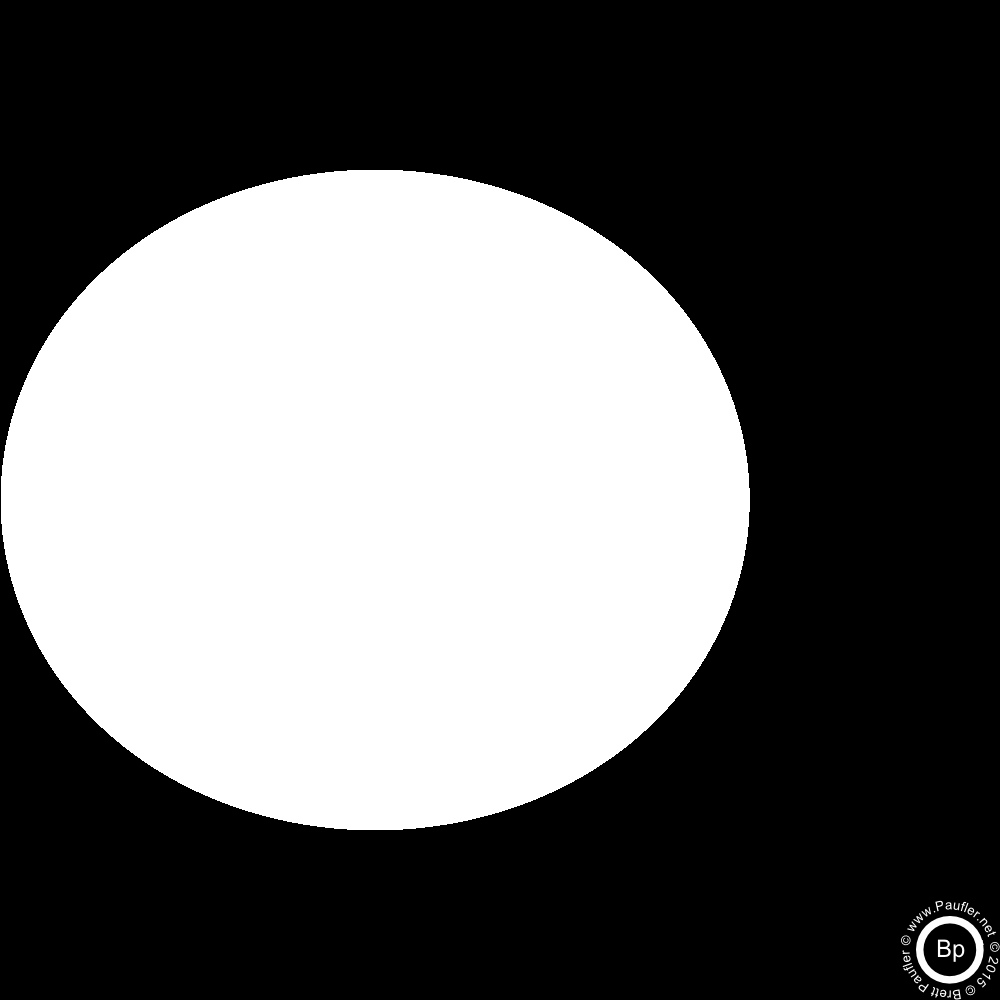

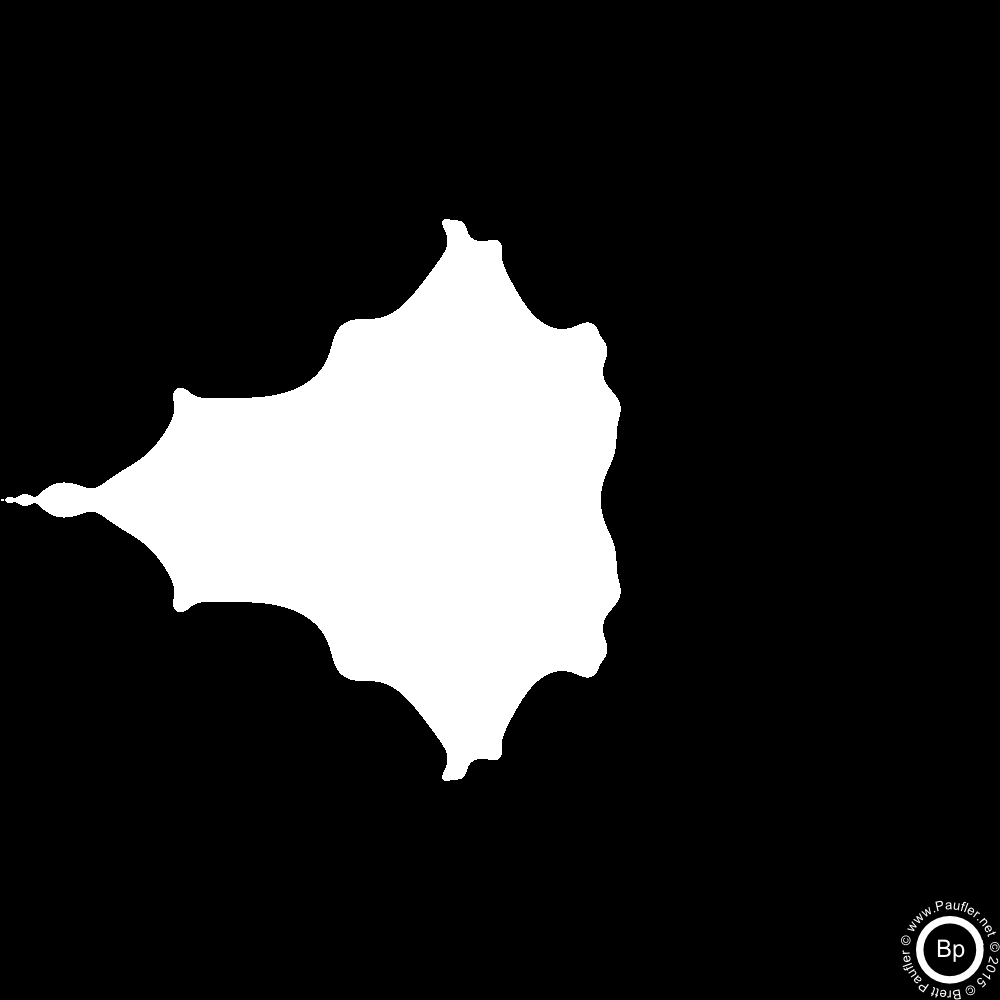

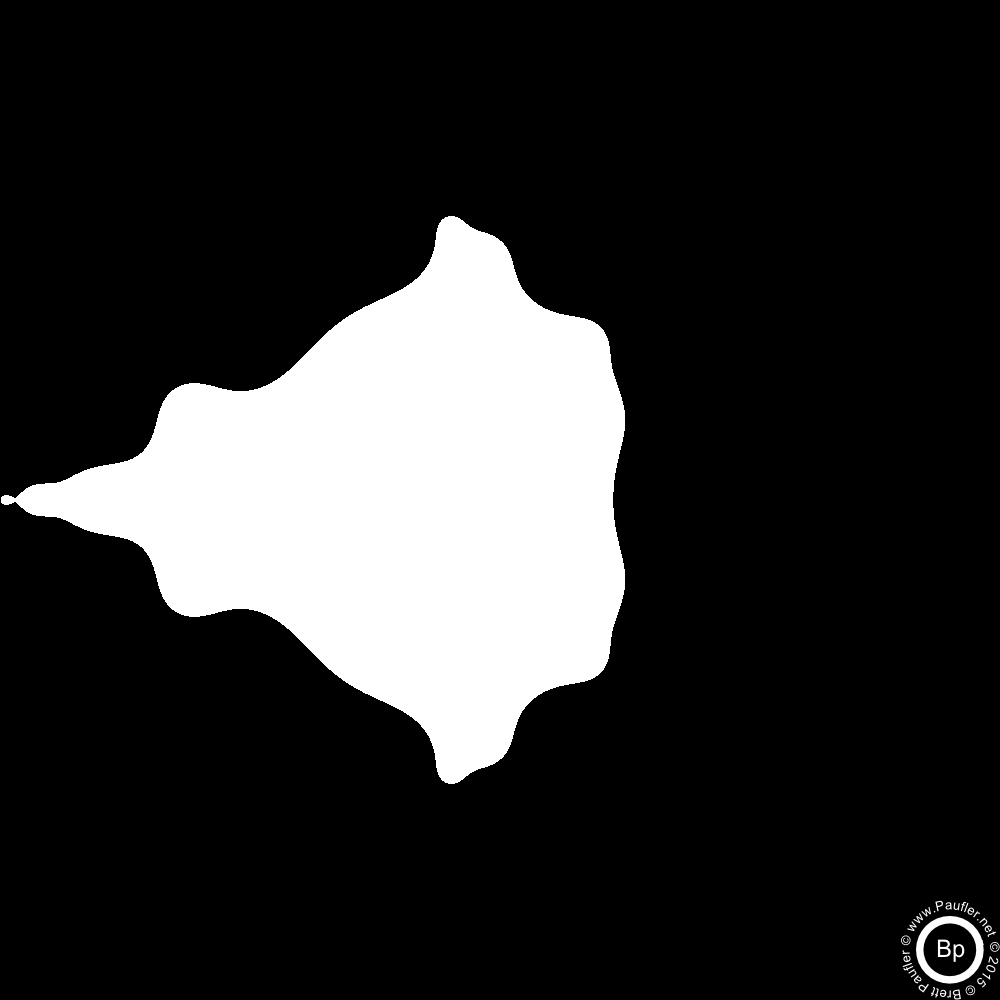

Mandelbrot Set - Ever Higher Number of Iterations Set

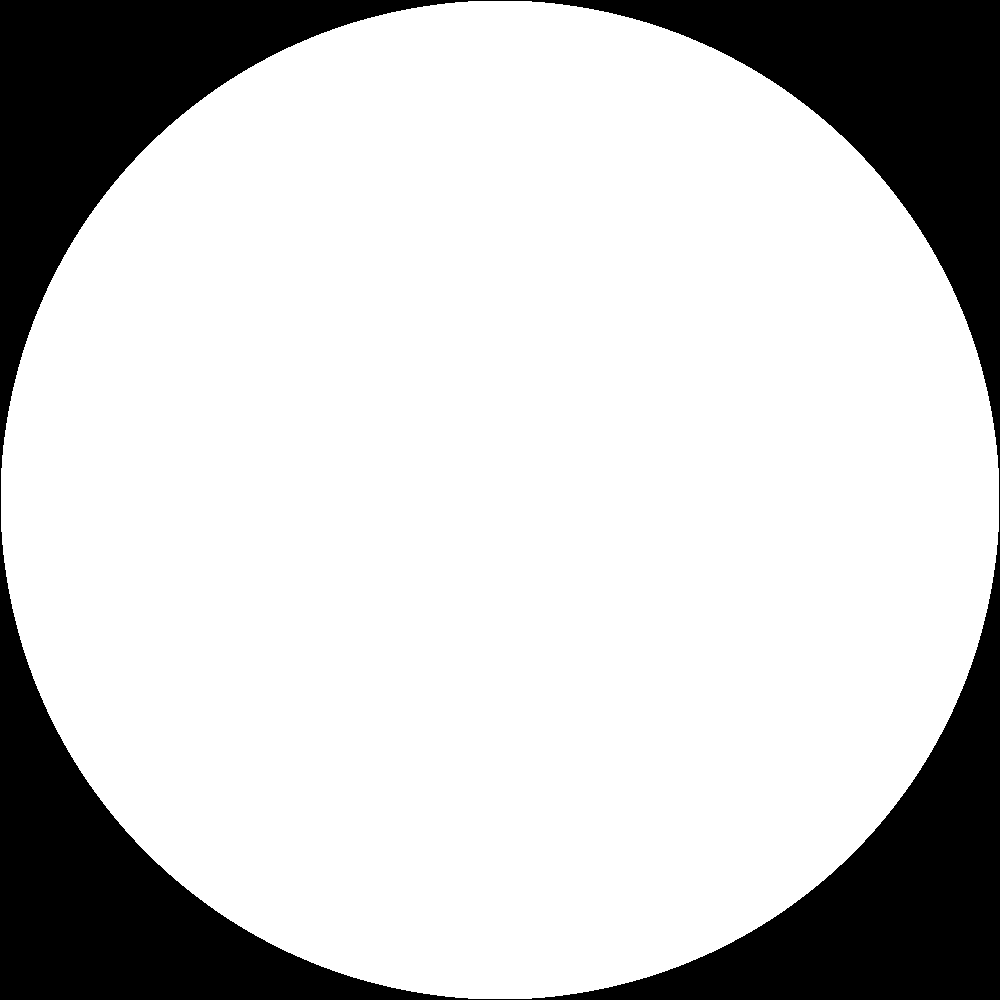

1 (-2 -2i to +2 +2i)
Mandelbrot Set - Ever Higher Number of Iterations Set
2
Mandelbrot Set - Ever Higher Number of Iterations Set
3
Mandelbrot Set - Ever Higher Number of Iterations Set

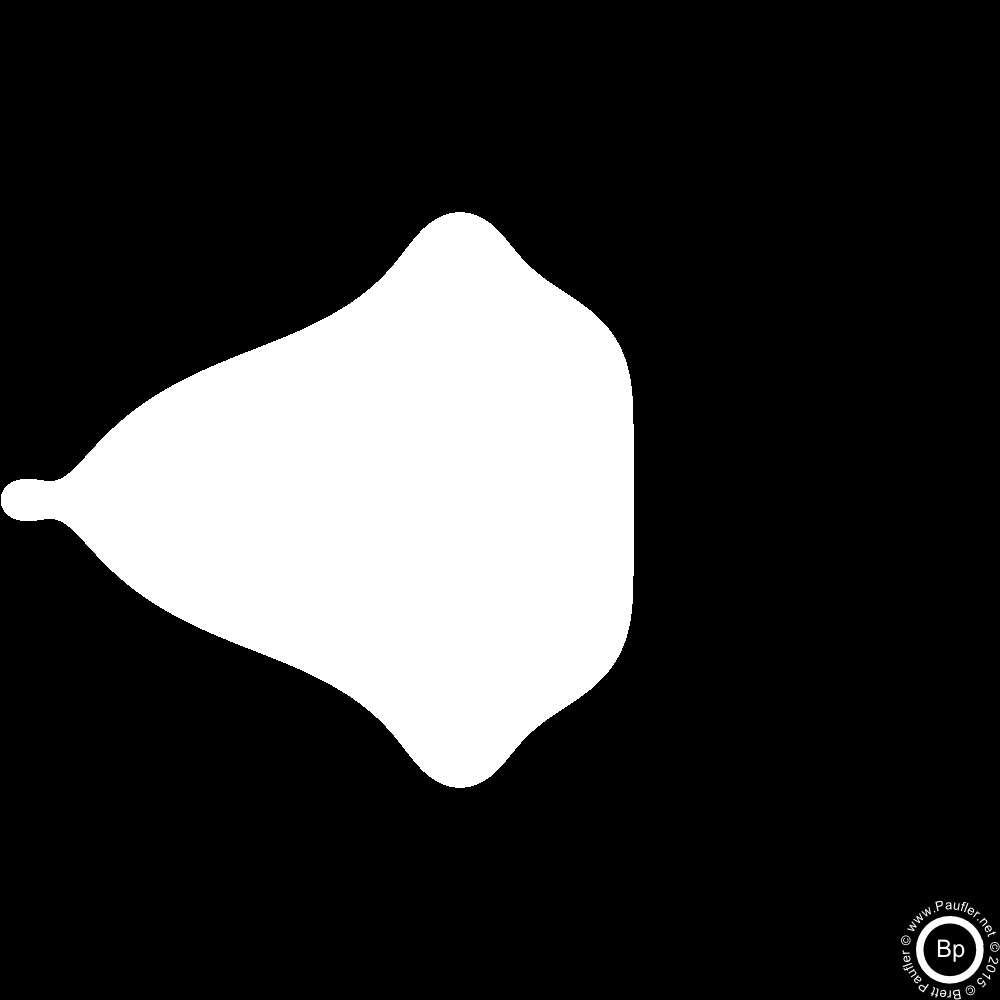

4

Mandelbrot Set - Ever Higher Number of Iterations Set
5
Mandelbrot Set - Ever Higher Number of Iterations Set
6
Mandelbrot Set - Ever Higher Number of Iterations Set
7
Mandelbrot Set - Ever Higher Number of Iterations Set
8

Mandelbrot Set - Ever Higher Number of Iterations Set
9
Mandelbrot Set - Ever Higher Number of Iterations Set
10
Mandelbrot Set - Ever Higher Number of Iterations Set
11
Mandelbrot Set - Ever Higher Number of Iterations Set
12 (-2 -2i to +2 +2i)
There is a point of diminishing returns.

And then, as much as I'd like to push 10,000px images to the web, as of 2015, modern browsers just aren't up to the job yet. Give 'em a year or two.

Computing the Mandelbrot Set in Python


Code be code.
And this be the code.

#Copyright Brett Paufler
#Released Under the Exclusive
#For Information Purposes ONLY (ALL RIGHTS RESERVED) License

import numpy as np #because that's how the cool kids do it
import skimage.io


def base_iter(x,c):
    '''This is the Heart of solving the Mandelbrot Set

    Full numpy arrays will be fed into this function
    '''
    return x*x + c


def main_iter(c,numIt=50):
    '''Returns the Mandelbrot Set

    c is a numpy array of complex numbers defined over
        the area of interest
    numIt is the number of iterations, more, better
        but there is a point of diminishing returns
    '''
    #This x (and this c) are conceptually the same,
    # as per base_iter above
    x = np.zeros_like(c)
    for _ in range(numIt):
        x = base_iter(x, c)

    #If the absolute value of (a+bi) ever exceeds 2
    #The point is not part of the Mandelbrot Set
    #And tends toward infinity
    x = abs(x)
    x[x>2] = np.nan #Most of these values are already np.nan
    x[x<=2] = 1
    x[np.isnan(x)] = 0
    return x


def i_coord(s, (uL,lR)):
    '''returns a complex coordinate grid (aka c in the above)

    size = (s,s) = s high, s wide
    min_max is passed in a tuple of two complex numbers
        uL is the min (Upper Left)
        lR is the max (Lower Right)

    Odd fact, I am right/left dyslexic
    Often heard around my house,
        'No!  Your other right!'
    '''
    #real part, as a row
    r = np.linspace(np.real(uL), np.real(lR), s, dtype=complex)

    #imaginary part, as a column
    im = np.linspace(np.imag(uL), np.imag(lR), s, dtype=complex)
    im = np.reshape((im * 1j), (s,1)) #turns into a column, essentially

    #add a row and a column together in Numpy
    #get a Matrix, row wide, column high
    return (r+im)


def next_coor(s, mandebrot, c):
    '''Returns the area of 'Most Interest' in the Mandelbrot Array
    Most interest being defined as relatively even numbers of 0's & 1's

    s = size (s,s) of image out, as it does everywhere else
    mandebrot (misspelled, of course) is the picture image array
    c is the starting complex array (for this go round, this image)
    '''
    #t being the value of 50-50 0's & 1's
    t = s*s/8.0

    m = []
    #This is messy
    #It's the type of hell that's usually easier for me
    # to rewrite than debug
    m.append((abs(t - sum(sum(mandebrot[:s/2, :s/2]))),
               (np.min(c[:s/2, :s/2]), np.max(c[:s/2, :s/2]) )))
    m.append((abs(t - sum(sum(mandebrot[:s/2, s/2:]))),
               (np.min(c[:s/2, s/2:]), np.max(c[:s/2, s/2:]) )))
    m.append((abs(t - sum(sum(mandebrot[s/2:, :s/2]))),
               (np.min(c[s/2:, :s/2]), np.max(c[s/2:, :s/2]) )))
    m.append((abs(t - sum(sum(mandebrot[s/2:, s/2:]))),
               (np.min(c[s/2:, s/2:]), np.max(c[s/2:, s/2:]) )))

    #sort, take the first (lowest t-sum),
    # return the second part of the tuple
    m.sort()
    _, (min_max) = m[0]
    return min_max


def auto_zoom(s, n, min_max=(-2.0 +2.0j, 2.0 -2.0j)):
    '''Successive Mandelbrot's with Magnification

    s = image size
    n = number of successive images (blurs out at 20 or so
    min_max is the starting area of interest

    for a bunch of size options (20 images each)
    for s in [100, 250, 500, 1000]:
        min_max = (-2.0 +2.0j, 2.0 -2.0j)
            auto_zoom(s,20,min_max)
    '''
    #1 loop per image out
    for n in range(1,n):
        print "\nStarting Loop"
        print "Min Max: %d, %r" % (s, min_max)
        c = i_coord(s, min_max) #c array for current coordinates
        mandebrot = main_iter(c) #the main computation
        sN = "mandebrot_{:0>4}_{:0>4}.png".format(s,n)
        print "Saving %s" % sN
        skimage.io.imsave(sN, mandebrot) #save the image
        min_max = next_coor(s, mandebrot, c) #reset coordinates


def main_seq_picture_iter(s,
                          numPics=12,
                          min_max=(-2.0 +2.0j, 2.0 -2.0j),
                          intermediate=True):
    '''saves a series of images,
    whereas autozoom focuses in (drills ever deeper)
    into the Mandelbrot Set,
        This function outputs a series of ever refined images
        focusing on a single area of the set

    s = size of pictures to save
    numPics = number of sequential images
            (iterations, refinement of the Mandelbrot set)
    min_max is tuple of area of interest
        so by manually (or by other means)
        the images may be obtained for any section of the set
    intermediate = whether to save the 'part way' image progressions
            (rather than just the final product)


    Probably rather than a function call,
        one should think of this as a script.
        It solves a problem (pictures for this webpage).
        But to solve another problem,
        it would need to be rewritten or tweaked
        (and not just passed different parameters)
    '''
    #c = array of complex numbers
    #target of Mandelbrot image area
    c = i_coord(s, min_max)

    #g = for the compound image out
    #    green and grayscale
    g = np.zeros((s,s))


    #x is the incremented array
    #    the increased resolution copy of the Mandelbrot set
    #    as per other functions above (same x, essentially)
    x = np.zeros_like(c)


    for n in range(1, numPics + 1):
        x = base_iter(x, c)

        #p = binary (black/white) (0,1)
        #    color scale image for each iteration
        #    Note the logic, similiar to main_iter()
        p = x.copy()
        p = abs(p)
        p[p>2] = np.nan
        p[p<=2] = 1
        p[np.isnan(p)] = 0

        #increments the soft output, grayscale array
        #    Since this is an image effect
        #    p*n, p+n, p by itself, whatever
        g += p * n

        if intermediate: #save a PNG
            sN = "mandebrot_resolve_{:0>4}_{:0>4}.png".format(s,n)
            skimage.io.imsave(sN,p)
            print sN

    #After the Loop, Output some Compound Images
    z = np.zeros_like(g, dtype=int)
    o = np.ones_like(g, dtype=int) * 255

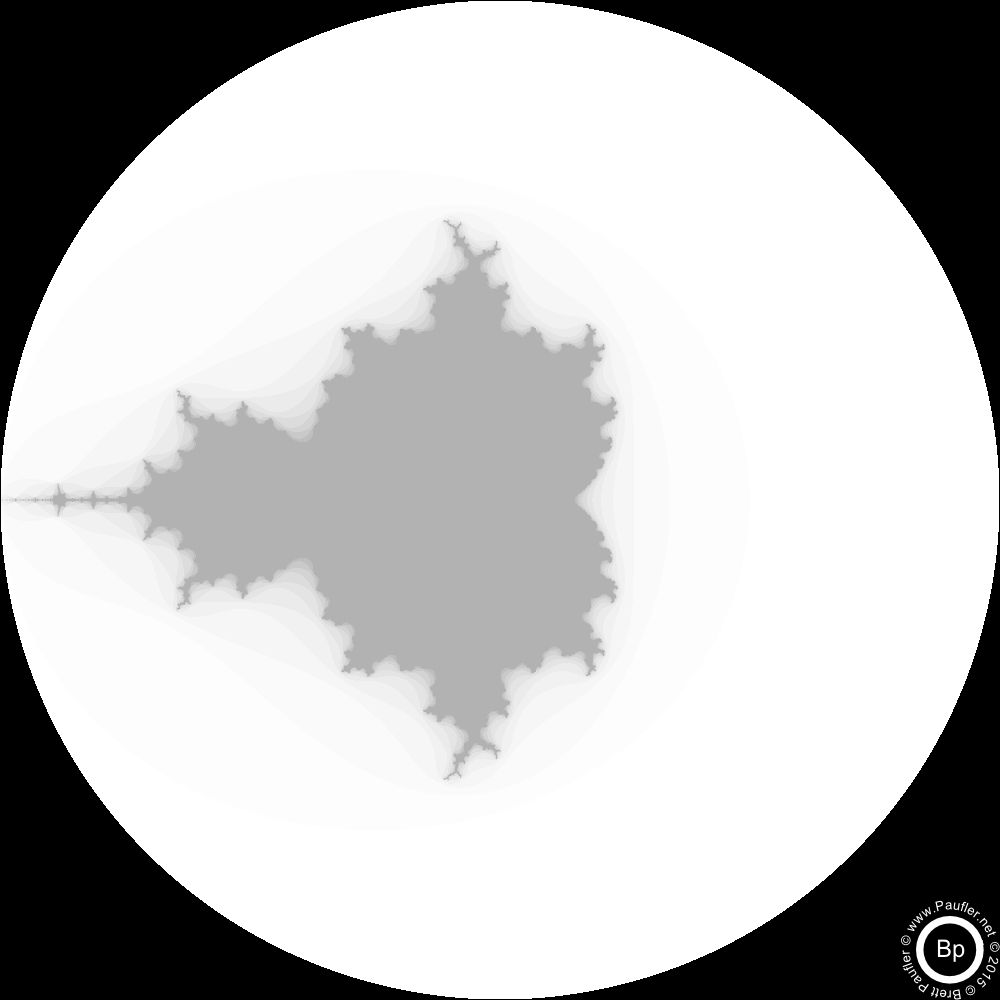

    sN = "mandebrot_full_resolve.png" #white circle, gray Mandelbrot
    skimage.io.imsave(sN,g) #one layer, so grayscale
    sN = "mandebrot_full_resolve_green.png" #green circle
    skimage.io.imsave(sN,np.dstack((z,g,z,g))) #(R,G,B, Alpha)

    g = g / np.max(g) * 255
    print np.max(g), np.min(g)
    g = np.array(g, dtype=int)

    sN = "mandebrot_full_resolve_green_%s.png" % s
    skimage.io.imsave(sN, np.dstack((z,g,z,o))) #not used
    print sN
    sNa = "mandebrot_full_resolve_green_alphatrack_%s.png" % s
    skimage.io.imsave(sNa, np.dstack((z,g,z,g))) #Green Mandelbrot
    print sNa
    return s


main_seq_picture_iter(1000, 12)

'''
Originally, I had it on my TODO list to do a colourized version
of the Mandelbrot Set (Using some sort of compound logic),
but I'm not convinced the colours mean anything (are just random),
so I've sort of lost my enthusiasm for the project.

Still, someday...
'''
Code as Text File: mandelbrot_numpy.txt

And that's all I have to say about that...
(famous last words)

More Coding Related Stuff

paufler.net@gmail.com

Terms of Service
© Copyright 2015 Brett Paufler
